Pinecone Model SG1009/1010 1/10 High and low speed simulated climbing rc car
search
  • Pinecone Model SG1009/1010 1/10 High and low speed simulated climbing rc car

Pinecone Model SG1009/1010 1/10 High and low speed simulated climbing rc car

$132.99
Tax excluded

Overview: The PINECONE MODEL SG1009/SG1010 is a 1:10 scale 4WD RC off-road vehicle made of plastic and metal, equipped with a 380 brushed motor, 120A integrated ESC, full proportional steering, and high/low speed gearbox. It reaches up to 15 km/h, offers strong off-road climbing performance, and comes with a transmitter, battery, and charger.

Type:

  • SG1009-Truck Style
    A-1: Yellow  A-2: Blue
  • SG1010-SUV Style
    B-1: Yellow  B-2: Blue
Type: A-1
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

What improvements have been made to the new SG1009 / SG1010 RC car?

The SG1009 / SG1010 models were fully upgraded on January 8, 2026, and all units currently on sale are the latest improved version.

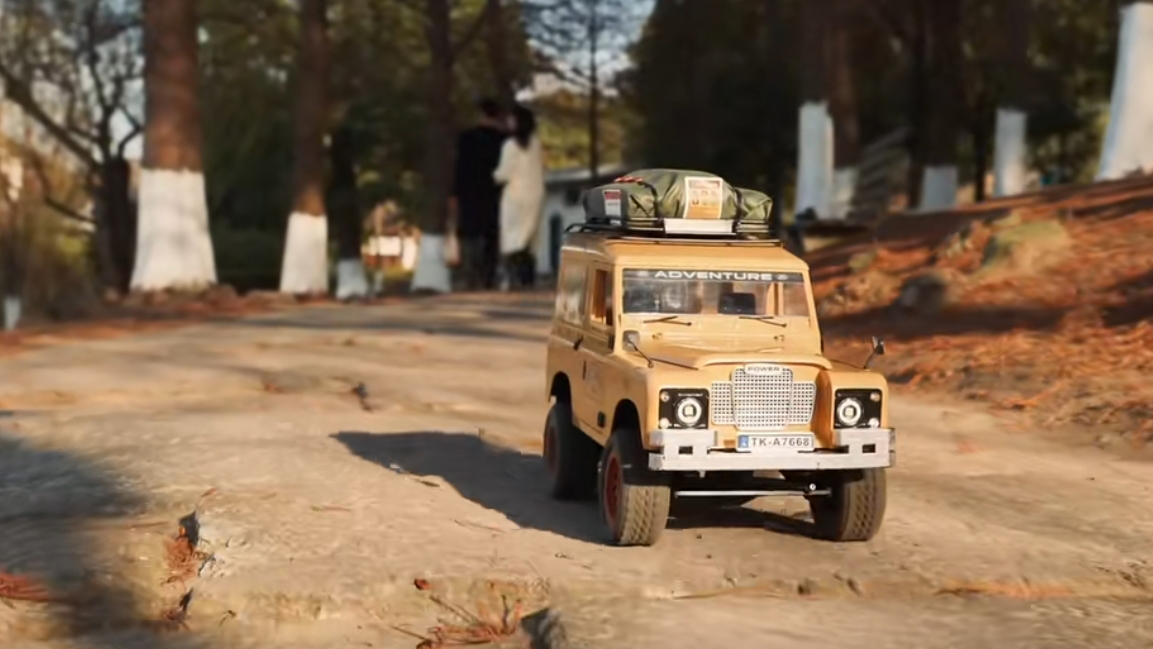

Pinecone Model sg1010 rc car 13

The main upgrades include:

  1. Front wheel structure upgrade: The front wheel mounts and wheel hub drivetrain components have been replaced to improve stability and durability.
  2. Drivetrain optimization: The driveshaft section has been retooled with new rubber components and universal joints, ensuring smoother power transmission.
  3. Gearbox sealing enhancement: An O-ring has been added at the connection between the drive gearbox and transmission gearbox to improve sealing performance.
  4. Gearbox bearing upgrade: The drive gearbox has been upgraded with bearings, reducing friction and improving durability and transmission efficiency.

-----------------------☆-----------------------

I. Basic Information

  • Brand: Pinecone Model
  • Model: SG1009 / SG1010
  • Scale: 1:10
  • Material: Plastic + Metal
  • Vehicle Size: 39.5 × 18.5 × 23 cm
  • Wheelbase: 225 mm
  • Rear Track Width: 152 mm

II. Power & Control System

  • ESC / Receiver: Integrated 120A ESC & receiver
  • Motor: 380 brushed motor, 22,000 RPM
  • Servo:
    1. Steering servo: 19g, 3-wire
    2. Gear-shift servo: 9g
  • Battery (Vehicle): 7.4V 1300mAh lithium battery
  • Remote Control Type: Full proportional synchronous control
  • Frequency: 2.4GHz
  • Charger: USB 7.4V balance charger
  • Control Distance:  100 m
  • Run Time: 25 minutes
  • Charging Time: 3 hours
  • Max Speed:
    1. High speed: 15 km/h
    2. Low speed: 8 km/h

III. Functions & Features

  • Drive Type: 4WD
  • Differential Structure: Front & rear solid axle, no differential
  • Full proportional steering control
  • High / low speed gear shifting
  • Simulated vehicle lighting system
  • Strong off-road and climbing performance
  • Suitable for various terrains

IV. Package Included

  • 1 × RC Car (SG1009 or SG1010)
  • 1 × 2.4GHz Transmitter
  • 1 x Manual
  • 1 × 7.4V 1300mAh Lithium Battery
  • 1 × USB Charger
  • 1 × User Manual

pinecone model sg1010 rc car 1pinecone model sg1010 rc car 2
