PRO001 Brushless Kit Parts For Pinecone Model SG1606 / SG1606Pro 1/16 RC Truck
$62.99
Tax excluded
Brands/Model: Pinecone Model SG1606 / SG1606Pro;
Parts name: Brushless Kit (for Brushless Version);
Parts number: PRO001;
Material: Metal/Electronic Component;

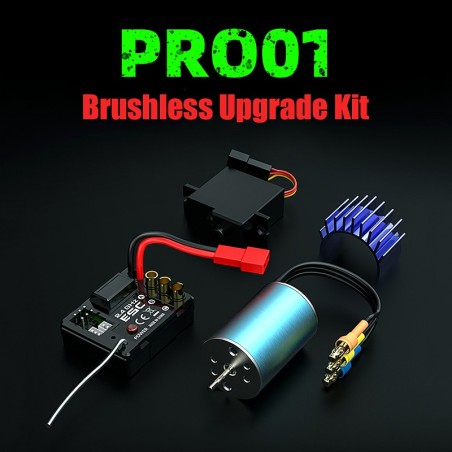

Package list:
- 1pcs Brushless motor;
- 1pcs Heat sink;
- 1pcs Brushless ESC;
- 1pcs Servo;
Specification:
Brushless Motor Parameters
- KV value: 3900KV;
- Size (without shaft and cable): Approx. 24 x 35 mm/0.9 x 1.4 inches;
Brushless ESC Parameters
- Working Voltage: DC5.5-9V;
- Rated Voltage: 7.4V (2s);
- Continuous Current: 25A;
- Peak Current: 50A;
Servo parameters
- Twist: 1.8-2.2 kg.Cm (6V);
- Working speed: 0.14-0.16s/60° (6V);
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Parameters of Pinecone Model SG1606 / SG1606Pro RC Car:
- Running Time: Approx. 20 Minutes
- Charging Time: Approx. 2.5 Hours
- Frequency: 2.4GHz
- Control Distance: 80m
- Control Type: Full-Proportional Synchronous System
Note: If you have any questions about the product, or can not find the accessories you want, please contact us by e-mail, we will reply to you as soon as possible!
